Below you can find the full tank sizing table with dimensions in centimeters and capacity in liters, including downloadable PDF spec sheets by model.

If you need a project-specific configuration, contact our engineering team for support.

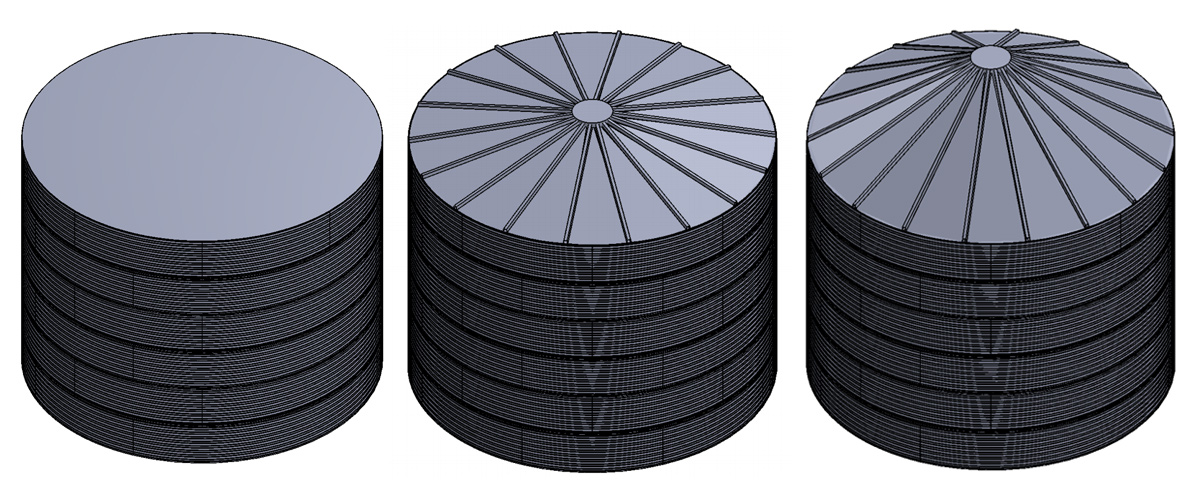

Tank roof drawings

Roof Options

Roof options include 10°, 30°, domed, flat, and inverted configurations.

10° Roof

30° Roof

Domed Roof

Flat Roof

Inverted Roof

Specs Library

If you need a project-specific configuration, contact our engineering team for support.

Model	Diameter (cm)	Eave Height (cm)	Peak Height Flat Roof (cm)	Peak Height Dome Roof (cm)	Peak Height 30° Roof (cm)	Capacity (L)	Spec Sheets
601	183	112	112	122	165	2,903	30° • dome
602	183	224	224	234	277	5,811	30° • dome
603	183	335	335	345	389	8,714	30° • dome
604	183	447	447	457	500	11,617	30° • dome
605	183	559	559	569	612	14,525	30° • dome
606	183	671	671	681	724	17,428	30° • dome
901	274	112	112	122	193	6,537	30° • dome
902	274	224	224	234	305	13,071	30° • dome
903	274	335	335	345	417	19,608	30° • dome
904	274	447	447	457	528	26,142	30° • dome
905	274	559	559	569	640	32,679	30° • dome
906	274	671	671	681	752	39,213	30° • dome
1201	366	112	112	122	221	11,617	30° • dome
1202	366	224	224	234	333	23,239	30° • dome
1203	366	335	335	345	444	34,856	30° • dome
1204	366	447	447	457	556	46,477	30° • dome
1205	366	559	559	569	668	58,095	30° • dome
1206	366	671	671	681	780	69,712	30° • dome
1501	457	112	112	122	231	18,155	30° • dome
1502	457	224	224	234	343	36,310	30° • dome
1503	457	335	335	345	455	54,465	30° • dome
1504	457	447	447	457	566	72,619	30° • dome
1505	457	559	559	569	678	90,774	30° • dome
1506	457	671	671	681	790	108,929	30° • dome
1507	457	782	782	792	902	127,084	30° • dome
1801	549	112	112	122	259	26,142	30° • dome
1802	549	224	224	234	371	52,284	30° • dome
1803	549	335	335	345	483	78,430	30° • dome
1804	549	447	447	457	594	104,572	30° • dome
1805	549	559	559	569	706	130,714	30° • dome
1806	549	671	671	681	818	156,856	30° • dome
1807	549	782	782	792	930	182,998	30° • dome
2101	640	112	112	122	284	35,583	10° • 30° • dome
2102	640	224	224	234	396	71,166	10° • 30° • dome
2103	640	335	335	345	508	106,749	10° • 30° • dome
2104	640	447	447	457	620	142,331	10° • 30° • dome
2105	640	559	559	569	732	177,914	10° • 30° • dome
2106	640	671	671	681	843	213,501	10° • 30° • dome
2107	640	782	782	792	955	249,084	10° • 30° • dome
2108	640	894	894	914	1,067	284,667	10° • 30° • dome
2401	732	112	112	122	310	46,477	10° • 30° • dome
2402	732	224	224	234	422	92,951	10° • 30° • dome
2403	732	335	335	345	533	139,428	10° • 30° • dome
2404	732	447	447	457	645	185,905	10° • 30° • dome
2405	732	559	559	569	757	232,379	10° • 30° • dome
2406	732	671	671	681	869	278,856	10° • 30° • dome
2407	732	782	782	792	980	325,333	10° • 30° • dome
2408	732	894	894	914	1,092	371,807	10° • 30° • dome
2701	823	112	112	122	338	58,822	10° • 30° • dome
2702	823	224	224	234	450	117,643	10° • 30° • dome
2703	823	335	335	345	561	176,465	10° • 30° • dome
2704	823	447	447	457	673	235,286	10° • 30° • dome
2705	823	559	559	569	785	294,108	10° • 30° • dome
2706	823	671	671	681	897	352,929	10° • 30° • dome
2707	823	782	782	792	1,008	411,747	10° • 30° • dome
2708	823	894	894	914	1,120	470,568	10° • 30° • dome
2709	823	1,006	1,006	1,016	1,232	529,390	—
3001	914	112	112	122	363	72,619	30° • dome
3002	914	224	224	234	475	145,239	30° • dome
3003	914	335	335	345	587	217,858	30° • dome
3004	914	447	447	457	698	290,474	30° • dome
3005	914	559	559	569	810	363,093	30° • dome
3006	914	671	671	681	922	435,712	30° • dome
3007	914	782	782	792	1,034	508,332	30° • dome
3008	914	894	894	914	1,146	580,951	30° • dome
3009	914	1,006	1,006	1,016	1,257	653,570	30° • dome
3301	1,006	112	112	122	376	87,867	30° • dome
3302	1,006	224	224	234	488	175,738	30° • dome
3303	1,006	335	335	345	599	263,605	30° • dome
3304	1,006	447	447	457	711	351,475	30° • dome
3305	1,006	559	559	569	823	439,342	30° • dome
3306	1,006	671	671	681	935	527,213	30° • dome
3307	1,006	782	782	792	1,046	615,080	30° • dome
3308	1,006	894	894	914	1,158	702,951	30° • dome
3309	1,006	1,006	1,006	1,016	1,270	790,818	30° • dome
3601	1,097	112	112	122	401	104,572	30° • dome
3602	1,097	224	224	234	513	209,140	30° • dome
3603	1,097	335	335	345	625	313,712	30° • dome
3604	1,097	447	447	457	737	418,284	30° • dome
3605	1,097	559	559	569	848	522,856	30° • dome
3606	1,097	671	671	681	960	627,424	30° • dome
3607	1,097	782	782	792	1,072	731,996	30° • dome
3608	1,097	894	894	914	1,184	836,568	30° • dome
3609	1,097	1,006	1,006	1,016	1,295	941,140	30° • dome
3901	1,189	112	112	122	429	122,727	30° • dome
3902	1,189	224	224	234	541	245,450	30° • dome
3903	1,189	335	335	345	653	368,177	30° • dome
3904	1,189	447	447	457	765	490,904	30° • dome
3905	1,189	559	559	569	876	613,630	30° • dome
3906	1,189	671	671	681	988	736,353	30° • dome
3907	1,189	782	782	792	1,100	859,080	30° • dome
3908	1,189	894	894	914	1,212	981,807	30° • dome
3909	1,189	1,006	1,006	1,016	1,323	1,104,530	30° • dome
4201	1,280	112	112	122	455	142,331	30° • dome
4202	1,280	224	224	234	566	284,667	30° • dome
4203	1,280	335	335	345	678	426,998	30° • dome
4204	1,280	447	447	457	790	569,330	30° • dome
4205	1,280	559	559	569	902	711,665	30° • dome
4206	1,280	671	671	681	1,013	853,996	30° • dome
4207	1,280	782	782	792	1,125	996,328	30° • dome
4208	1,280	894	894	914	1,237	1,138,663	30° • dome
4209	1,280	1,006	1,006	1,016	1,349	1,280,995	30° • dome
4801	1,463	112	112	122	508	185,905	30° • dome
4802	1,463	224	224	234	620	371,807	30° • dome
4803	1,463	335	335	345	732	557,712	30° • dome
4804	1,463	447	447	457	843	743,618	30° • dome
4805	1,463	559	559	569	955	929,519	30° • dome
4806	1,463	671	671	681	1,067	1,115,425	30° • dome
4807	1,463	782	782	792	1,179	1,301,330	30° • dome
4808	1,463	894	894	914	1,290	1,487,232	30° • dome
4809	1,463	1,006	1,006	1,016	1,402	1,673,137	30° • dome

For common use-case applications and tank styles see our tank options page. For tank installations we’re particularly proud of, see our recent projects.
